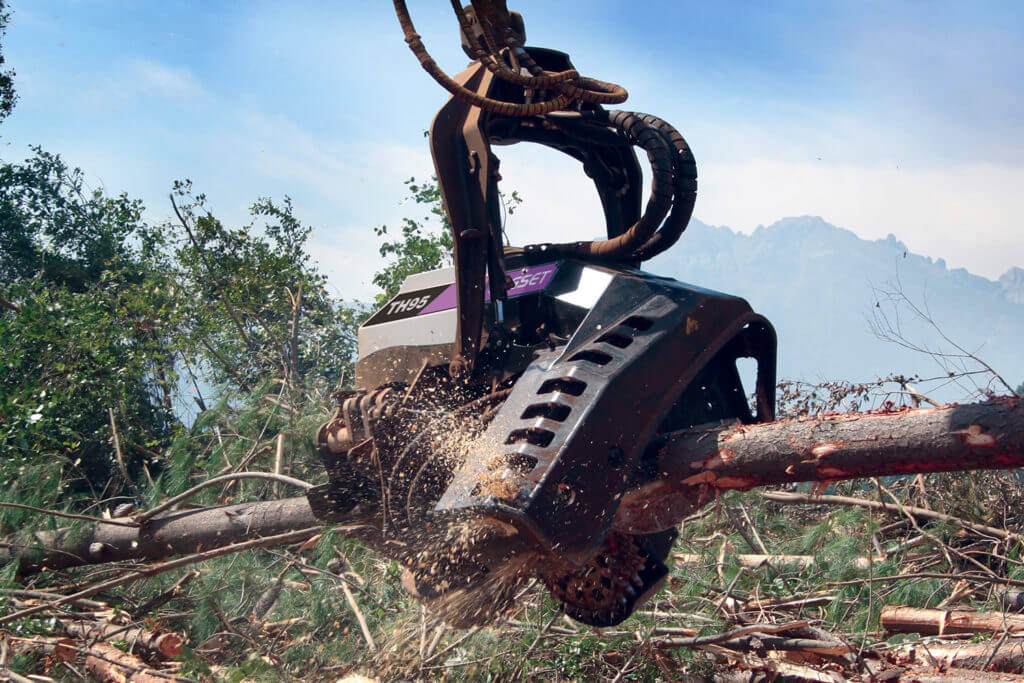

TH95
HEAVY-DUTY HEAD FOR LARGE VOLUMES
TH95 is the largest head in the TH series. It is a genuinely heavy-duty harvester head for harvesting and processing large volumes. Its compact structure and versatility make it suitable for many kinds of logging operations.
BCA Solution
*Dealer autorizat
vezi acum
TECHNOLOGIES
GUARANTEED EFFICIENCY
The chassis and delimbing knives create minimal friction against the tree stem. The reduced stress during feeding means that the fuel consumption is low and the engine and hydraulic components have a longer lifespan. The geometry of the feeding arms and delimbing knives is optimized for large and heavy timber. This guarantees efficient feeding of even bent and heavily branched trees.
PRECISE MEASURING WITH TOC-MD
As a standard, all the heads in the TH series come with the TOC-MD measuring device. TH95 works seamlessly with TOC-MD. This union of strength and intelligence provides reliable measurements, easy adjustments and unbeatable productivity.
IN A NUTSHELL
Dimensions
| Width – head open | 2 040 mm (80.3″) |
| Width – head closed | 1 640 mm (64.6″) |
| Height to top knife | 2 070 mm (81.5″) |
| Height with rotator and link | 2 700 mm (106.3″) |
| Weight with rotator and link | 2 900 kg (6 390 lbs) |
FELLING / CUTTING
| Max. felling / cutting diameter | 900 mm (35.4″) |
| Saw bar | 1 000 mm (39.4″) |
| Saw unit | SuperCut 300 |
| Saw motor | Parker F12-40 |
| Saw chain tensioning | Automatic |
| Chain oil tank volume | 18 l (4.8 US gal) |
HYDRAULIC SYSTEM
| Max pressure | 280 bar (4 061 PSI) |
| Flow required for optimal production | 300 l/min (79.3 US gal/min) |
| Valve block | Purpose built hydraulic manifold |
FEEDING
| Hydraulic motors – feeding arms | 1 120 cm³ |
| Hydraulic motors – chassis | 500 cm³ |
| Number of hydraulic motors | 4 pcs |
| Feeding speed, 300 l/min | 3,9 m/s (12.8 ft/s) |
| Max opening – feeding wheels | 880 mm (34.6″) |
DELIMBING
| Max opening – upper knives | 1 040 mm (40.9″) |
| Max opening – rear knives | 1 200 mm (47.2″) |
| Delimbing diameter tip to tip | 620 mm (24.4″) |
| Number of static knives | 2 pcs |
| Number of movables knives | 4 pcs |
| Max tilt angle | 144º |
ROTATOR
| Options: | Indexator IR12 |
MEASURING SYSTEM
| Device: | LOGSET TOC-MD 2 |
RECOMMENDED BASE MACHINE
| Wheeled base | – |
| Tracked base | 30 t (66 130 lbs) |
OPTIONAL EQUIPMENTS
Contact your local dealer for more information about options.
TECHNOLOGIES
Optimal Delimbing diameter 40-60 cm Maximum felling-/cutting diameter 90 cm
FEEDING WHEEL SAFEGUARD
The feeding wheel safety guard is as a standard equipment to protect the harvester head from rocky ground, for example when lowered down. The feeding roller model is optional.
LENGTH MEASURING DEVICE
The length measuring device is firmly attached to the harvester head frame. Choose the measuring wheel model that suits your needs.
REACTION ROD
The reaction rods in the feeder arms centres the woods inside the harvester head and ensures that the stem remains at the bottom of the harvester head even during a possible feeding reversal step.
DELIMBING KNIVES
Robust delimbing knives are optimized for average stem size and them are lightly delimbing large, branched conifers for example.
REAR DELIMBING KNIVES PIN
The sturdy housing structure connects both the fastening pins for the rear and front delimbing knives. The service life of the pins is long. The locking nut on the pin keeps the whole package together.
